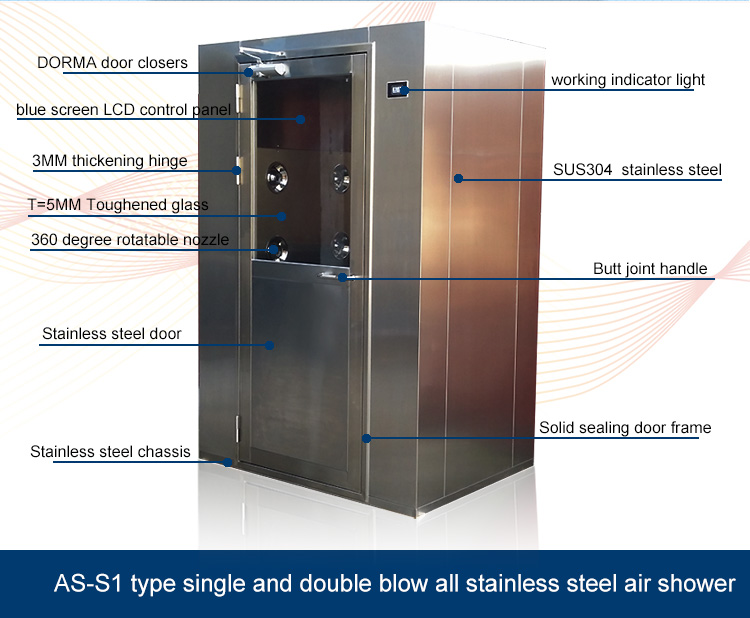

The single person air shower room is assembled with foam insulation color siding and aluminum component. It is equipped with centrifugal fan and the primary and high efficiency air filters. The product has the features of elegant appearance, compact structure, easy maintenance and simple operation. Meanwhile, we can produce the people and cargo air shower room with the electronic interlocking and infrared sensing device according to customers' needs.

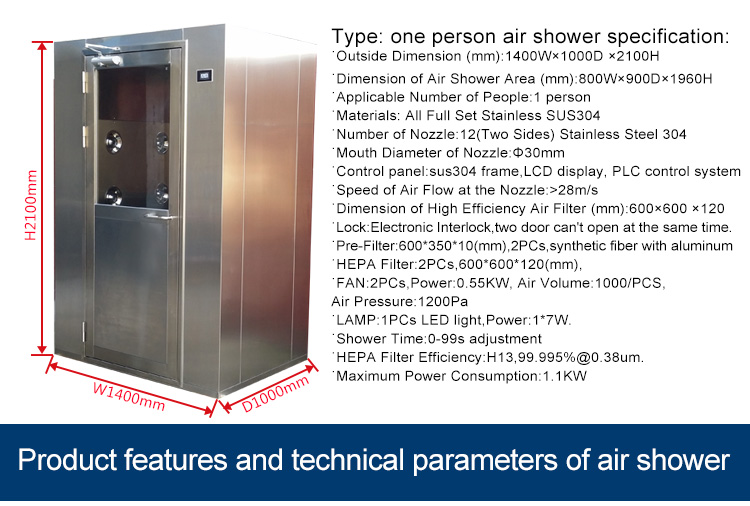

Type: one person air shower specification:
˙Outside Dimension (mm):1400W×1000D ×2100H
˙Dimension of Air Shower Area (mm):800W×900D×1960H
˙Applicable Number of People:1 person
˙Materials: All Full Set Stainless SUS304 or coated cold rolled steel
˙Number of Nozzle:12(Two Sides) Stainless Steel 304
˙Mouth Diameter of Nozzle:Φ30mm
˙Control panel:sus304 frame,LCD display, PLC control system
˙Speed of Air Flow at the Nozzle:>28m/s
˙Dimension of High Efficiency Air Filter (mm):600×600 ×120
˙Lock:Electronic Interlock,two door can't open at the same time.
˙Pre-Filter:600*350*10(mm),2PCs,synthetic fiber with aluminum
˙HEPA Filter:2PCs,600*600*120(mm),
˙FAN:2PCs,Power:0.55KW, Air Volume:1000/PCS,Air Pressure:1200Pa
˙LAMP:1PCs LED light,Power:1*7W.
˙Shower Time:0-99s adjustment
˙HEPA Filter Efficiency:H13,99.995%@0.38um.
˙Maximum Power Consumption:1.1KW
˙Voltage ˙available:380VAC / 5Phase，50HZ(can make other standard voltage)
Technical Parameters:
| Model | AS-S1 | AS-S2 | AS-S3 | AS-S4 |
| Applicable Number of People | 1 | 2-4 | 4-5 | 5-6 |
| Air Shower Time | 0- 99s (Adjustable) | |||
| Number of Nozzle | 12 (Two Sides) | 24 (Two Sides) | 36 (Two Sides) | 48 (Two Sides) |
| Mouth Diameter of Nozzle | Φ 30 mm | Φ 30 mm | Φ30 mm | Φ30 mm |
| Speed of Air Flow at the Nozzle | >25m/s | >25m/s | >25m/s | >25m/s |
| Dimension of High Efficiency Air Filter (mm) | 600×600×120 | 600 ×600×120 | 600×600×120 | 600×600×120 |
| Dimension of Air Shower Area (mm) | 800×900×196 0 | 800×1900×196 0 | 800×2900×196 0 | 800×3900×196 0 |
| Outside Dimension (mm) | 1400×1000×210 0 | 1400×2000×2100 | 1400×3000×2100 | 1400×4000×2100 |
Power Supply :380V,50HZ, we can made nonstandard voltage for different country. | ||||
| Maximum Power Consumption | 1.1KW | 2.2KW | 3.3KW | 4.4KW |
As the filtration equipment through the action of high strength air flow, the single person air shower room is often used in conjunction with clean room. It can remove the impurity such as dust on the working staff before they go into the clean room. Each side of our product has six nozzles with a wide distribution range. With the mouth diameter of 30mm, the nozzle can spray out the air quickly and the air shower area can be up to 800×900×1960mm. The air shower time can be adjusted in the range of 0 to 99s. Thus, the air shower effect can be assured to be the best level, which guarantees the cleanliness of the clean room completely.
Related Names&Real shot pictures
Air shower has other names ,such as clean air shower, cleanroom air shower, interlock air shower,cleaning air shower,buffer room,air shower room.
