Name:Characteristics of centrifugal air curtain:
I:low noise, running noise as low as 49 db.
II: The structure of the impeller of the centrifugal front curved blade is adopted, and the design of the spiral case is matched with the off effect, so that the air volume is large.
III: all metal shell, high fire resistance, convenient installation.
IV:the motor continues to run more than 5000 hours without failure.
V:a key switch control, microcomputer touch switch control and microcomputer remote control method, suitable for different location requirements.

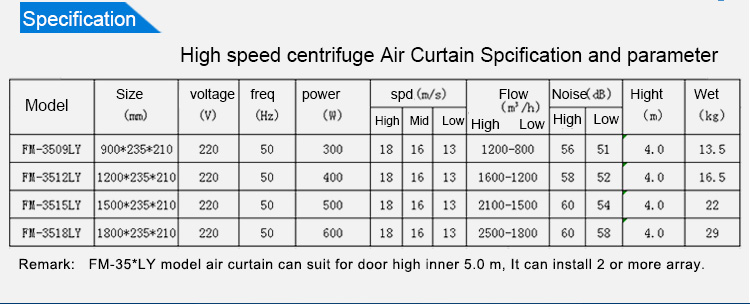

| Deluxe centrifugal air curtain machine specification: | ||||||||||||||
| Model | Size (mm) | Rated voltage (V) | Frequency (Hz) | Power （W） | wind speed (m/s) | Air volume （m³/h） | Noise（dB） | Height （m） | Weight （kg） | Quantity fans | ||||
| High | Mid | Low | High | Low | ||||||||||
| FM-3509LY | 900*235*210 | 220 | 50 | 300 | 18 | 16 | 13 | 1200-800 | 56 | 51 | 4.0 | 13.5 | 2 | |
| FM-3512LY | 1200*235*210 | 220 | 50 | 400 | 18 | 16 | 13 | 1600-1200 | 58 | 52 | 4.0 | 16.5 | 2 | |
| FM-3515LY | 1500*235*210 | 220 | 50 | 500 | 18 | 16 | 13 | 2000-1500 | 60 | 54 | 4.0 | 22 | 3 | |
| FM-3518LY | 1800*235*210 | 220 | 50 | 600 | 18 | 16 | 13 | 2500-1800 | 60 | 58 | 4.0 | 29 | 4 | |
Difference between the cross flow air curtain fan and the centrifugal type air curtain machine:
I: cross flow air curtain machine using motor to drive the impeller to send wind, generally a typhoon curtain machine inside a motor;

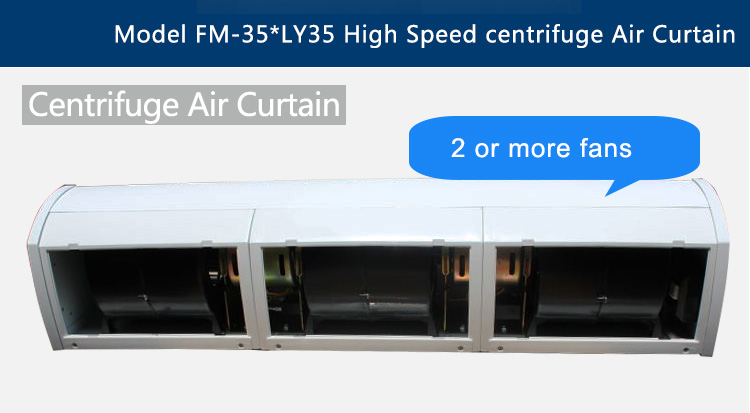

II: the centrifugal air curtain fan blowing directly, a curtain can be arranged by the typhoon to multi motor group list.
