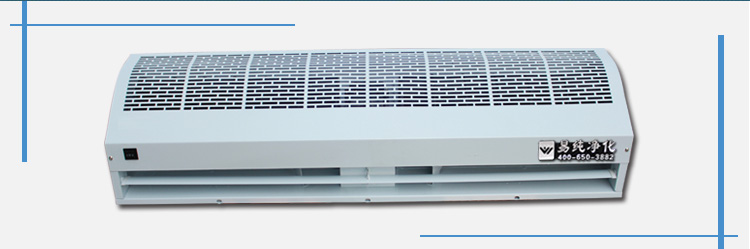

I:Name:FM type Air Curtain

The FM air curtain is a product with a novel arc design. The adopted high efficiency PTC heating element is developed by integrating the latest technology from abroad. It is safe and has the features of no open fire, long lifetime and high durability. Meanwhile, the product is equipped with contactor and can achieve free switching between cold and hot air. The control box for rated current and the manual control switch device can be available. The mounting height within 3m is proper for the product. Several sets of the product can be assembled together for matching with the width of door. Our air curtain is very fit for use in hospital, shopping mall, restaurant and others.

Technical Specifications

ModelPower (W)Air Speed at Air Outlet (m/s)Air Volume (m3/min)Mounting HeightNoise (dB)Outside Dimension (mm)Weight (kg)
FM30-608010-1335-40Within 3m≤60600×240×24014
FM30-9012010-1340-45≤62900×240×24018
FM30-10018010-1342-47≤631000×240×24020
FM30-12018010-1345-50≤641200×240×24021
FM30-15025010-1350-55≤661500×240×24025
FM30-18037010-1555-65≤681800×240×24030

This series of air curtains has six kinds with the models of FM30-60, FM30-90, FM30-100, FM30-120, FM30-150 and FM30-180. They are different in dimension, power and air volume and can meet the needs of customers fully. The FM30-60 product has the smallest size and weight. It can be installed easily and flexibly. Meanwhile, it can provide the air volume of 35 to 40m3/min and has low working noise which is no greater than 60dB. The FM30-180 product has the largest power of 370W and can provide the air volume up to 55 to 65m3/min. It has the largest size of 1800×240×240mm and needs enough space for installation.

As an experienced air curtain manufacturer in China, our company provides a wide range of products that includes double person horizontal laminar flow clean bench, 100 class clean cabinet, clean room HEPA filter, and more.

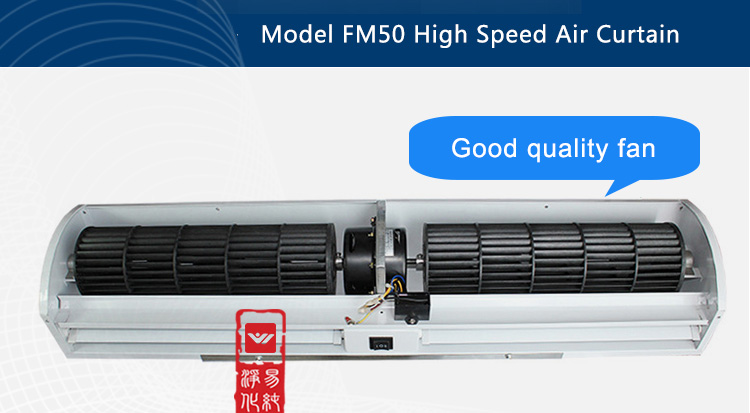

II:Name:FM50 type strong wind air curtain

The FM50 air curtain can provide strong wind and is especially fit for the application of industrial workshop. The proper mounting height of the product is within 5m for ensuring full use of the wind force of the product. The product can be assembled together to meet the needs of customers. It adopts the PTC heating element which takes usage of advanced foreign technology and has the advantages of high safeness, long life span, high durability and no open flame. Furnished with contactor, the product can realize the cold and hot air switching freely. The rated current control box and the manual control switch device are available.

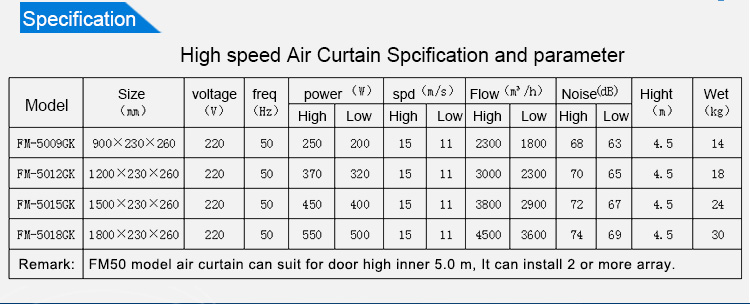

Technical Specifications

ModelPower (W)Air Speed at Air Outlet (m/s)Air Volume (m3/min)Mounting HeightNoise (dB)Outside Dimension (mm)Weight (kg)
FM500925013-1550-60Within 5m≤68900×270×27020
FM501237013-1560-70≤701200×270×27025
FM501540013-1570-80≤721500×270×27030
