Auto-sensing Sliding Door Stainless Steel Air Shower

Our automatic sliding door air shower's advantages and functions are as follows:

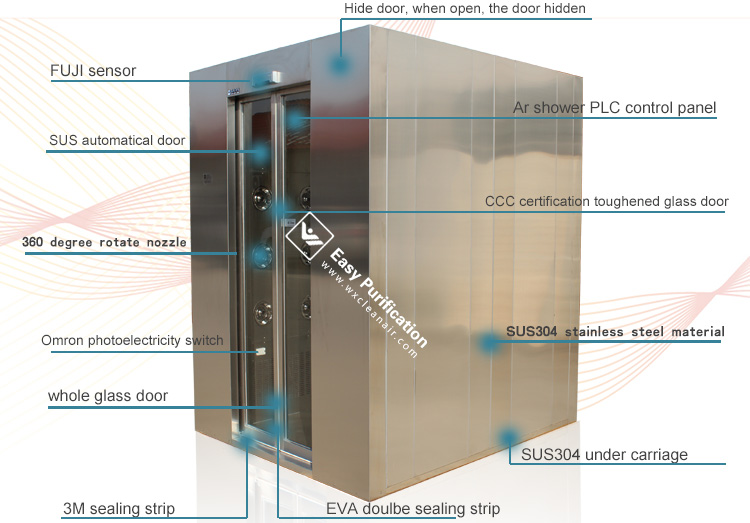

1) Door open method: automatic sliding door by photoelectric sensor. When personnel enter air shower, the door will open automatically. When personnel go out of it, the door will be closed automatically. The control system run automatically, the two doors electronically interlocked, with photoelectric sensor (one door in open state, the other door must be in closed state. When personnel enter it, the system will shower automatically by photoelectric sensor);

2) Material: Stainless Steel SUS304 ;

3) LCD Display, touch-point switch to control blowing time and lamp time;

4) Infrared sensor automatic blowing, automatic stop;

5) Three-side blowing, left, right, and top, stainless steel nozzles;

6) 360-degree rotatable nozzles are installed according to customers' needs to keep high efficiency for blowing off particles from personnel;

7) Have electronic interlock air shower patent.

Technical Parameters

Model	AS-AS1	AS-AS2	AS-AS3	AS-AS4
Applicable Number of People	1	3-4	4-5	5-6
Air Shower Time	0- 99s (Adjustable)
Number of Nozzle	12(Two Sides)	24 ( Two Sides )	36 ( Two Sides )	48 ( Two Sides )
Mouth Diameter of Nozzle	Φ 30 mm	Φ 30 mm	Φ30 mm	Φ30 mm
Air Velocity at the Nozzle	>25m/s	>25m/s	>25m/s	>25m/s
Dimension of High Efficiency Air Filter (mm)	600×600×120	600 ×600×120	600×600×120	600×600×120
Dimension of Air Shower Area (mm)	800×1000×1960	800×2000×1960	800×3000×1960	800×4000×1960
Outside Dimension (mm)	1700×1240×2200	1700×2240×2200	1700×3240×2200	1700×4240×2200
Power Supply:380V,50HZ, we can made nonstandard voltage for different country.
Maximum Power Consumption	1.5KW	3KW	4.5KW	6KW

Related Names&Real shot pictures
Air shower has other names ,such as clean air shower, cleanroom air shower, interlock air shower,cleaning air shower,buffer room,air shower room.
