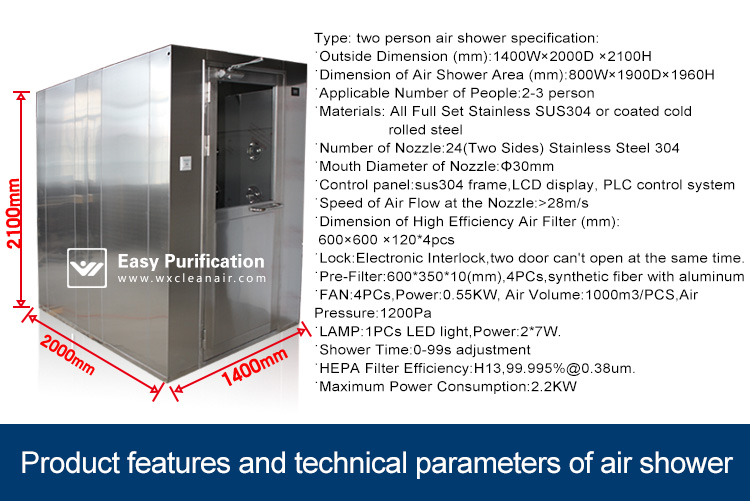

Type: two person air shower specification:
˙Outside Dimension (mm):1400W×2000D ×2100H
˙Dimension of Air Shower Area (mm):800W×1900D×1960H
˙Applicable Number of People:2-3 person
˙Materials: All Full Set Stainless SUS304 or coated cold rolled steel
˙Number of Nozzle:24(Two Sides) Stainless Steel 304
˙Mouth Diameter of Nozzle:Φ30mm
˙Control panel:sus304 frame,LCD display, PLC control system
˙Speed of Air Flow at the Nozzle:>28m/s
˙Dimension of High Efficiency Air Filter (mm):600×600 ×120*4pcs
˙Lock:Electronic Interlock,two door can't open at the same time.
˙Pre-Filter:600*350*10(mm),4PCs,synthetic fiber with aluminum
˙FAN:4PCs,Power:0.55KW, Air Volume:1000m3/PCS,Air Pressure:1200Pa
˙LAMP:1PCs LED light,Power:2*7W.
˙Shower Time:0-99s adjustment
˙HEPA Filter Efficiency:H13,99.995%@0.38um.
˙Maximum Power Consumption:2.2KW
˙Voltage ˙available:380VAC / 5Phase,50HZ(can make other standard voltage)



Technical Parameters

ModelAS-S1AS-S2AS-S3AS-S4
Applicable Number of People12-44-55-6
Air Shower Time0- 99s (Adjustable)
Number of Nozzle12(Two Sides)24(Two Sides)36(Two Sides)48(Two Sides)
Mouth Diameter of NozzleΦ30mmΦ30mmΦ30mmΦ30mm
Speed of Air Flow at the Nozzle>25m/s>25m/s>25m/s>25m/s
Dimension of High Efficiency Air Filter (mm)600×600 ×120600×600 ×120600×600 ×120600×600 ×120
Dimension of Air Shower Area (mm)800×900 ×1960800×1900 ×1960800×2900 ×1960800×3900 ×1960
Outside Dimension (mm)1400×1000 ×21001400×2000 ×21001400×3000 ×21001400×4000 ×2100
Power Supply380V,50HZ, we can made nonstandard voltage for different country.
Maximum Power Consumption1.1KW2.2KW3.3KW4.4KW

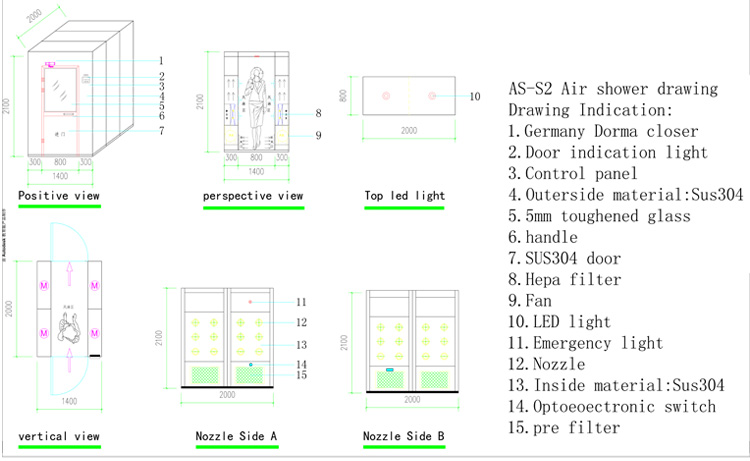

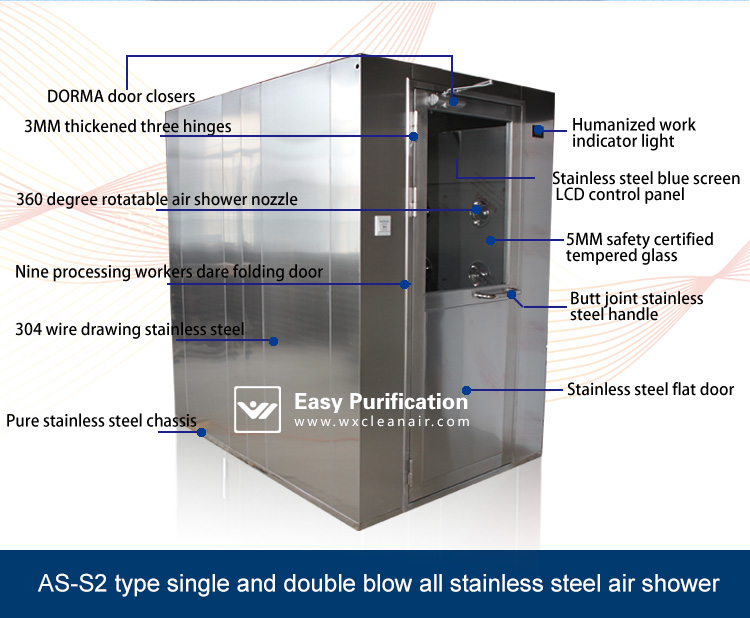

Designed with the dimension of 1400×2000×2100mm, the double person air shower room is actually composed by two single person products. The double person product and the single person product have no difference in function except for the applicable number of people and the volume. The material for interior and exterior body of the product is SUS304 stainless steel. The body of the product is equipped with multiple filters for getting excellent filtration effect. Users can also choose the product with high efficiency particulate air filter (HEPA filter). There are total 24 nozzles with the mouth diameter of 30mm set on the two sides of the product. These nozzles can achieve air shower for two to four persons simultaneously.

Meanwhile, we can provide the air shower room with infrared sensor system and link the system with the doors of the product and clean room through the electronic interlocking device. When the working staff enters into the product, the infrared sensor system can sense that and start to work. After finishing the air shower, the other door can be opened automatically to allow the purified working staff entering into the clean room. In addition, we can also supply the product for cargo air shower if customers have the needs.

As a specialized double person air shower room manufacturer in China, Wuxi Yijing also offers open type clean cabinet, easy cleaning cleanroom pass box, single person vertical flow clean bench, and more.

Related Names&Real shot pictures
Air shower has other names ,such as clean air shower, cleanroom air shower, interlock air shower,cleaning air shower,buffer room,air shower room.
