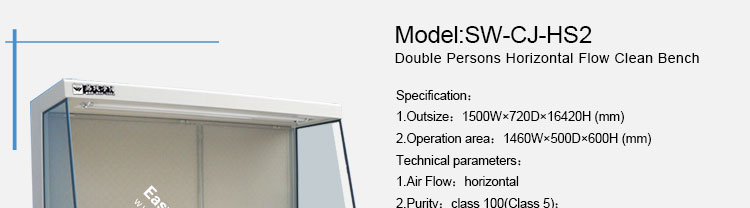

Double Person Horizontal Laminar Flow Clean Bench

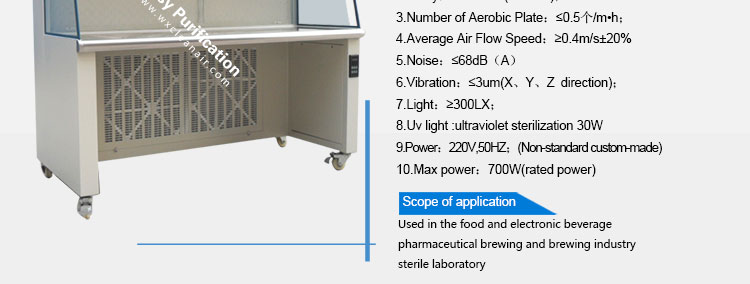

Technical Parameters

ItemData
Number of Aerobic Plate≤0.5/m·h
Filtration Efficiency≥0.3um (for the diameter of particle)
≥99.995% (for the dust with sodium flame method )
Average Air Flow Speed≥0.5m/s ±20% (adjustable)
Noise≤62dB (A)
Vibration≤3um (in the directions of X, Y, Z)
Illumination≥300lx

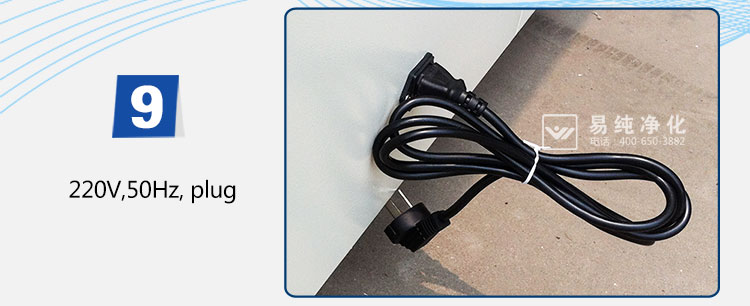

Power Supply220V 50Hz
Illumination Lamp40W×1
Ultraviolet Lamp40W×1
Max. Power Consumption800W (Rated Power)
Outside Dimension (W×D×H)1500×720×1420mm
Dimension of Operation Area1460×520×600mm

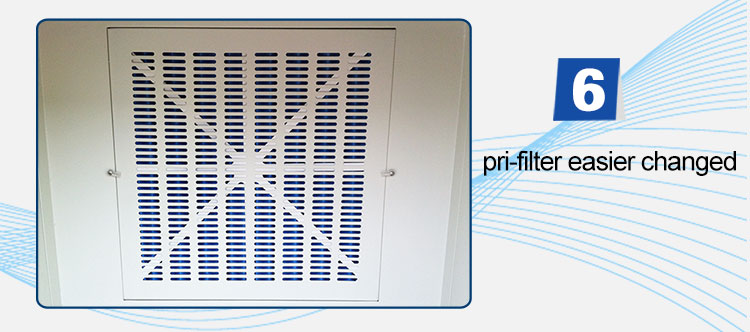

DimensionMedium Efficiency Air Filter (Two Sets)500×500mm
High Efficiency Air Filter (Two Sets)820×600×50*1pcs mm, 600×600×50*1pcs mm
Weight160kg

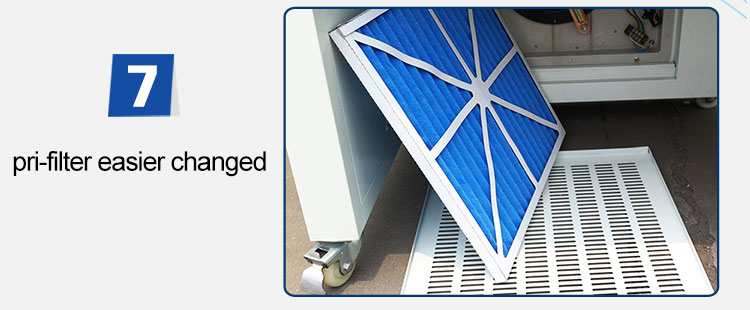

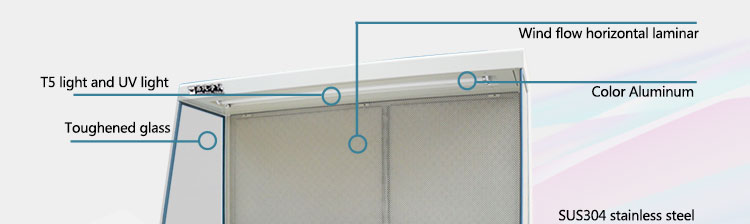

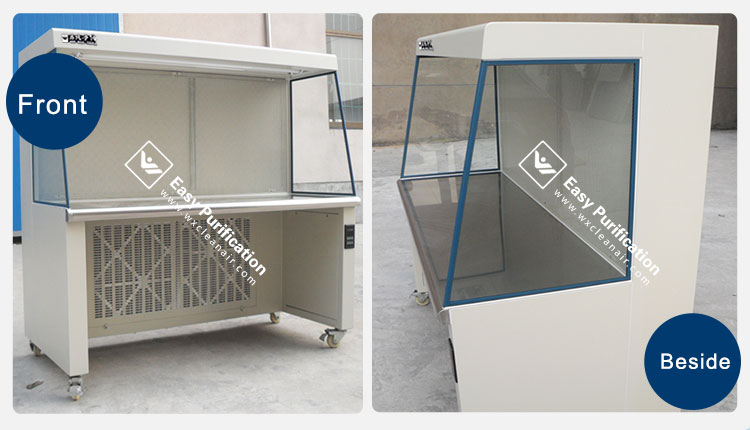

The double person horizontal laminar flow clean bench is designed with the outside dimension of 1500×720×1420mm and operational area dimension of 1460×520×600mm. It can be used by two people at the same time. The product blows the air to the working staff from the opposite direction horizontally. It can achieve filtration with primary, medium and high grades. Meanwhile, the product adopts two centrifugal fans which feature high air pressure and low noise. Featuring firmness and durability, the 8mm thickened glass is used at the right and left sides of the product. The application of the glass makes the working area brighter and more spacious. In addition, the high efficiency air filter has no baffle.

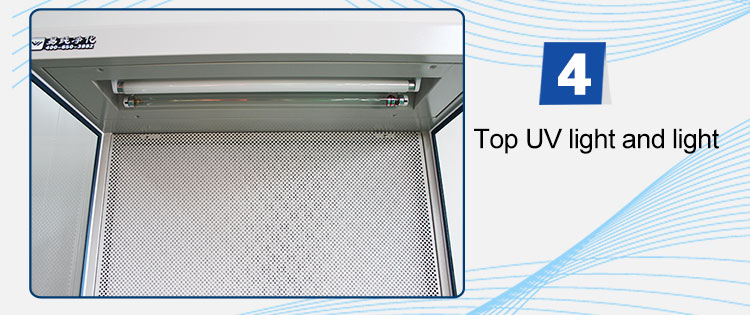

After being processed with four processes including baking finish, the outer housing of the double person horizontal laminar flow clean bench is resistant to impact, abrasion and corrosion. The ultraviolet lamp and illumination lamp with the power of 30W are installed on the top of the product, which can enhance the space utilization rate. Meanwhile, with the action of high air pressure fan available, the ultraviolet lamp can realize high sterilization effect to offer a clean operation environment.

We are a professional double person horizontal laminar flow clean bench manufacturer, based in China. We offer a variety of products, including strong wind air curtain, single person air shower room, GMP manufacturing for workshop and factory, and more.

Related Names&Real shot pictures
Clean bench supply high effiency enviroment for research and other high precision demand, it has other name,such as clean work table, cleaning bench, clean work cabinet etc.
