Name:Class 100 Clean Cabinet
The 100 class clean cabinet meets the American federal 209E standard. It is used for storing the products of enterprises in solar energy, medicine, food, scientific research and other areas for quality assurance and security. Our product can guarantee the protected articles from contamination by the dust in air. According to the basic function, the product can be divided into open type and double-door type.

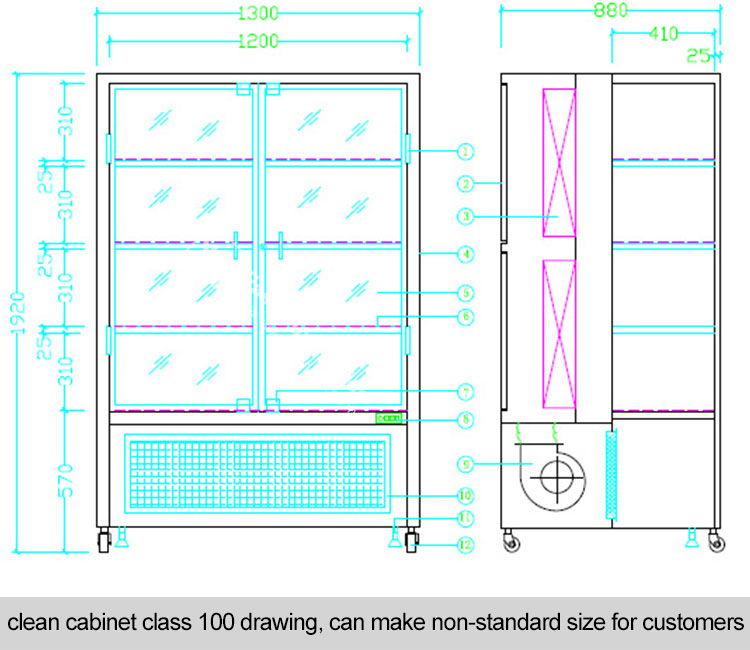

With the model of YJ1300-680, the clean cabinet is designed with the length of 1300mm, width of 680mm and height of 1920mm. It has four parts with the working area dimension for every part of 1220×410×310mm. The product can store articles with several kinds. Made of high quality steel and through multiple manufacturing procedures, the product has firm structure and strong durability. It is equipped with three-grade air filter, fan with the working noise lower than 62dB and other equipment. Though weighing 180kg, the product has two universal wheels and two directional wheels at its bottom for convenient movement.

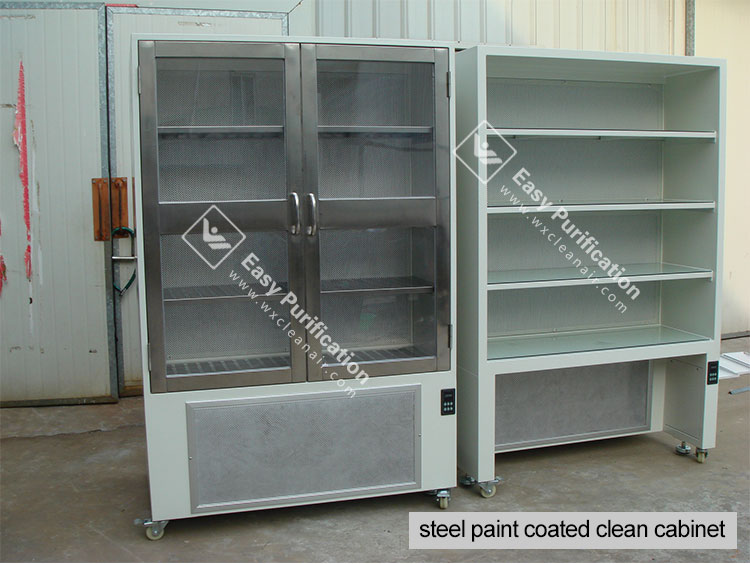

The open type clean cabinet contacts with the air of outer environment directly. It has strong cleaning capability and is convenient for users to fetch and store things. It is a good choice for the product to be used as a medicine cupboard. By using the internal circulation system, the double-door product won't be affected by outer environment. It is designed particularly fit for the fields of food and scientific research to protect the test sample from the influence by the outer environment.
Wuxi YiChun is an experienced 100 class clean cabinet manufacturer, based in China. We provide various types of products such as single person horizontal flow clean bench, stainless steel clean room pass box, and coated steel sandwich panel.
Technical Parameters
| Model | YC1300-680 |
| Type | Double-door Type |
| Purification Level | Class 100 (American Federal 209E Standard) |
| Filtration Efficiency | 99.995% (for the dust particle with the diameter of 0.3µm) |
| Dimension of Baffleless High Efficiency Air Filter (Two Sets) (mm) | 1220×610×70 |
| Total Power of Fan (One Set) (W) | 450 |
| Air Volume (m3/h) | 3000 |
| Rated Average Air Speed (m/s) | 0.3-0.6 (Adjustable) |
| Noise (dB) | ≤62 (A) |
| Power Supply | Single Phase 220V/50Hz |
| Outside Dimension (L×W×H) (mm) | 1300×680×1920 |
| Dimension of Every Part of the Working Area (mm) | 1220×410×310 |
| Overall Weight (kg) | About 200 |
Related Names&Real shot pictures
Clean bench supply high effiency enviroment for research and other high precision demand, it has other name,such as clean work table, cleaning bench, clean work cabinet etc.
