Quick Details

• Condition: New

• Place of origin: Jiangsu, China (Mainland)

• Brand Name: YiChun

• Model Number: SW-HS

• Voltage: Customized

• Power(W): 3.0KW

• Outside Dimension(L*W*H): 3000X3000X3000

• Inner Dimension(L*W*H): 2400X3000X2500

• Weight: 1200KG

• Warranty: 12months ex-factory

• After-sales Service Provided: Engineers available to service machinery overseas

• Product Name: SW-KS Clean Room Cargo Air Shower

• Material: Stainless Steel 304  or coated cold rolled steel

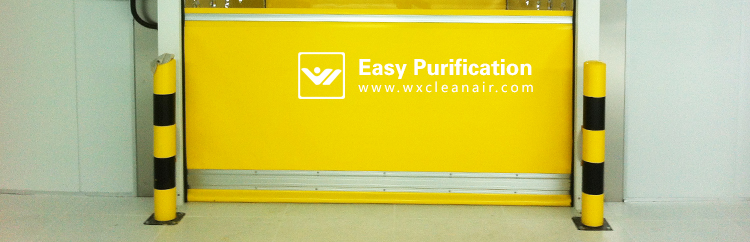

• Door: PVC Curtain

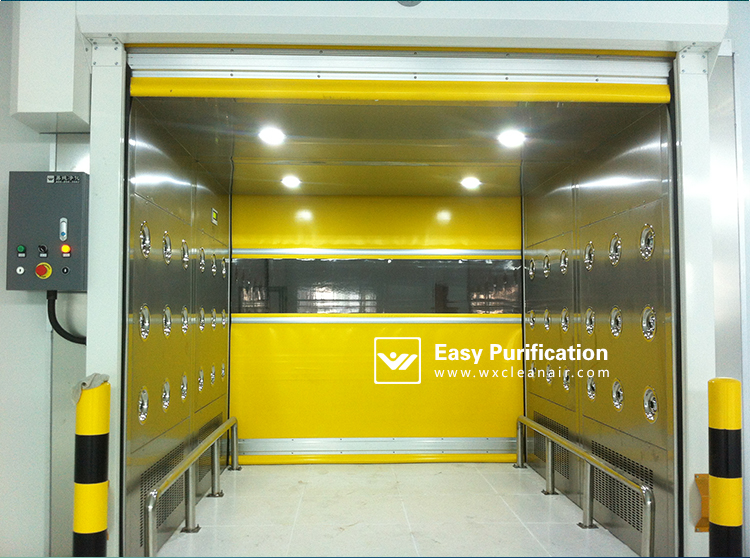

• Nozzle: Rotatable 360 degree

• Feature: Automatic Blowing

• Application: Cleanroom Entrance and Exit

• Door Lock: Electronic Interlock

• Air Shower Time: 0-99s, Adjustable

Packaging & Delivery

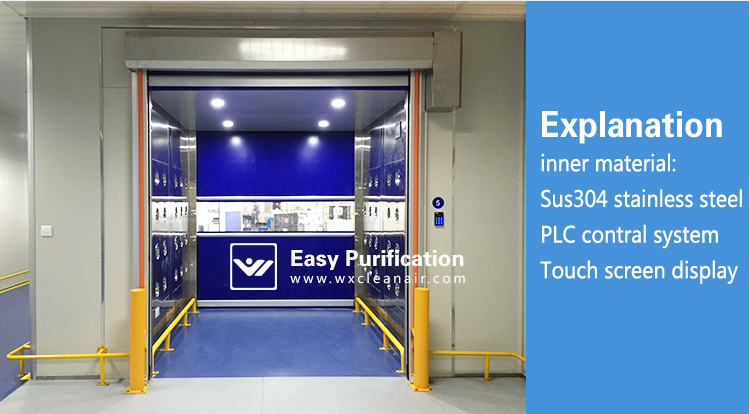

Clean Room Cargo Air Shower

SW-HS Clean Room Cargo Air Shower is specialized antechamber which personnel and cargoes need to pass through before entering clean rooms in order to decontaminate. Decontamination is done by clearing off dust and dirt particles from personnel and cargoes to minimize contamination of equipment or products.

In fields where sterile or dust-free conditions are critical, for example, life science and biomedical research, pharmaceutical, parenteral drug, microelectronics, aerospace and precision manufacturing, cargo air shower is considered essential equipment.

Principle of Work
Air in cargo air shower is pressed into static pressure chamber through pre-filter by low noise centrifugal fan, then pressed out by HEPA filter. The clean air sprays out from left, right, and top sides through nozzles after HEPA filter, blowing off the dust from body and goods, then intaked into pre-filter by blower. The dust is absorbed by pre-filter and HEPA filter. Clean air sprays out from nozzle again. It’s an inner circulation.

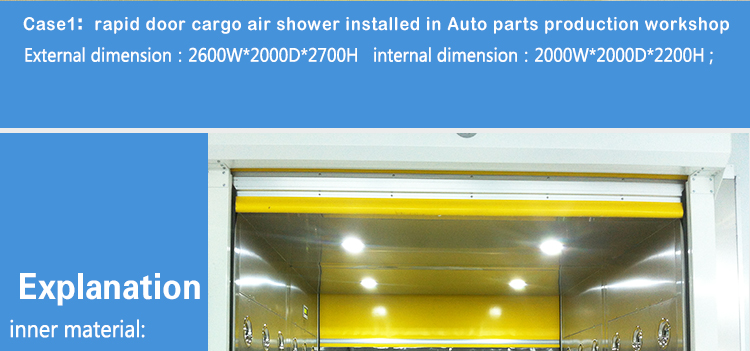

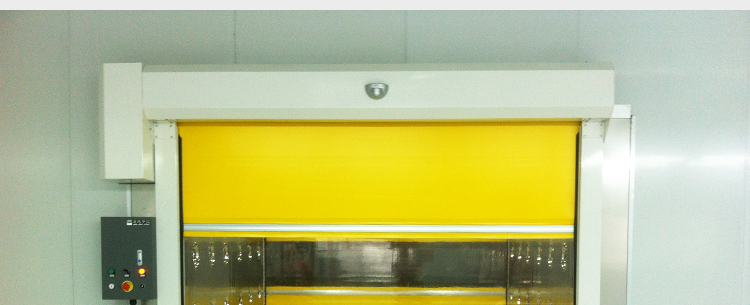

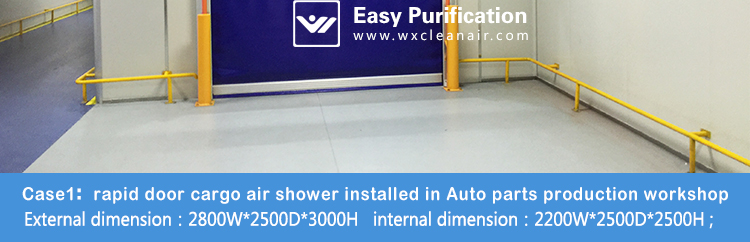

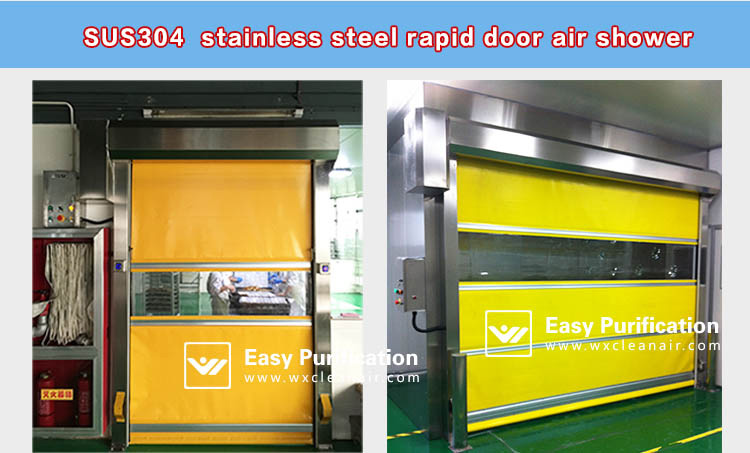

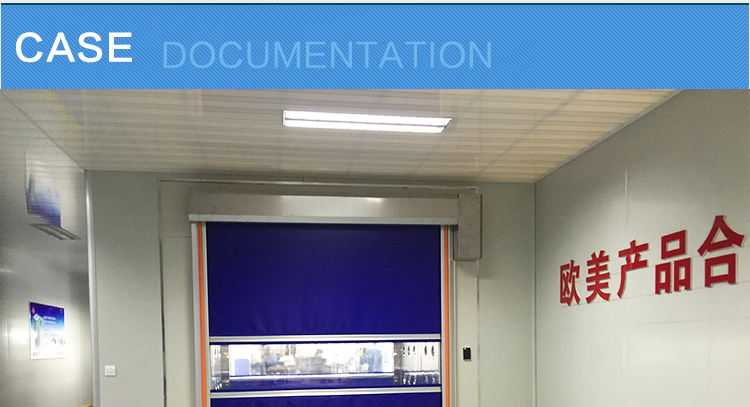

Related Names&Real shot pictures
Air shower has other names ,such as clean air shower, cleanroom air shower, interlock air shower,cleaning air shower,buffer room,air shower room.

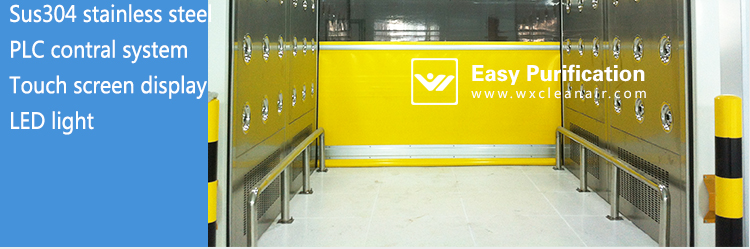

Technical Parameters

Inner Dimension: Customized, based on the goods/cart personnel need to push through cargo air shower;

Material: SUS304, 1mm thickness;

Operation Mode: Auto/Manual;

Airflow Velocity: above 22m/s;

Display Screen Function:

1) Automatic/Manual Switch

2) Lighting Time Adjustment

3) Showering Time Adjustment

4) Showering Status Display

5) Time Setting

6) Delay Closing Time Adjustment of Front/Back Door

7) Up/Down Speed Adjustment of Front/Back Door

8) Fault Reset

9) Interlock Status

10) Photoelectric Switch Correction

11) Reminder of HEPA Filter Replacement

Installation

Send finished products or do installation on-site.
